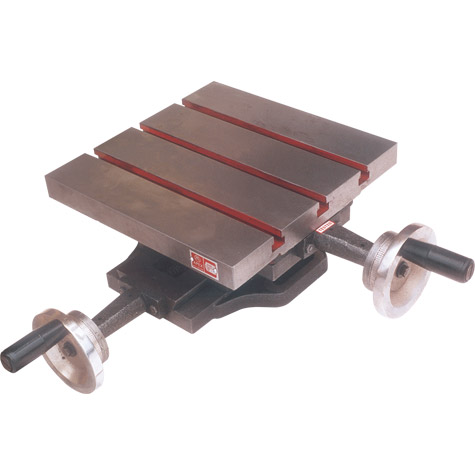

Compound Sliding Table

APEX Code 707T

Compound Sliding Table (With calibrated wheels & swivel graduated base)
(Size : 12x12", 12x20", 16x16")

Features :
  • The T-Slots are machined from Solid.
  • Equipped with two axis positioning.
  • Dovetailed slides have adjustable steel gibs to compensate for wear.
  • The surface table can swivel all round and 0° is marked to show the angular movement.
  • Base have bolt slots for machine mounting.
Application :
  • These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations
Construction :
  • Casting are the close Grey Iron dully stress relieved accurately machined and ground surface provide tolerance well within 0.01 MM / 100 MM.
  • Precision ACME feed screw is running in a hot stamped phosphor Bronze Nut thrust color for smooth operation and minimum back lash.
  • Top surface of the table has three equally spaced T-Slots.
Finish : Amazon Green
