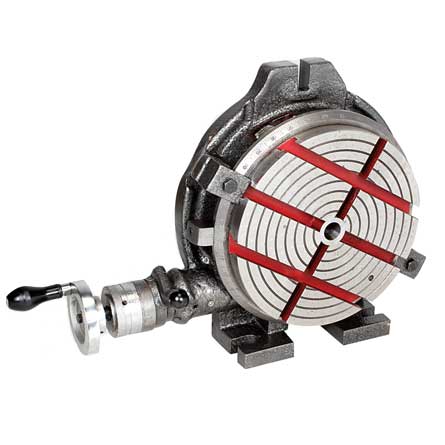

Rotary Milling Table
APEX Code 715E
Rotary Milling Table
(Size : 6",8",10",12",15",18",20")
Features :
- High accuracy, easy reading of all dias clear & functional of all operating elements, sturdy yet good looking practical design. These are widely used for circular cutting, angle cutting, boring and spot facing with a milling machine.
- Works as an index center in the vertical position, as well as conventional Rotary Table, graduated 360°
- Provision for fine adjustments when settings work piece.
- Efficient lock provided.
- Worm drive disengagement is quick and precise. An eccentric sleeve with thrust Bearing races encases the worm shaft.
- End play in worm shaft is adjustable.
- APEX ROTARY TABLES have a sturdy design to suit many achining operations on Milling Machines including circular cutting, setting angles and indexing. They are available in a range of sizes to suit various machines and machining applications.
- The table and base is manufactured from close grain shock resisting Cast Iron dully stress relieved
- Worm & center table bush made of selected steel.
- Direct reading to 2 minute for size 6",8" and 10" on hand
wheel scale. - Direct reading to 1 minute for size 12",15",18" and 20" on
hand wheel scale. - ACCURACY:- Maximum error 4 minutes of circular
division using hand wheels. - Table flat to within 0.01 mm / 100 mm.
- Working surface rotates in its own plane to within 0.030
mm. - Horizontal and Vertical supporting surface square with
0.01mm/100 mm. - Centre bush bore is true to table axis within 0.03 mm.
- Maximum parallelism error through 360° rotation of table
is .025 mm . - Both horizontal slots in & Vertical mounting on machine table.
| Specifications | |||||||
| Size in inches | 6 | 8 | 10 | 12 | 15 | 18 | 20 |
| Dia of Table (in mm) | 150 | 200 | 250 | 300 | 375 | 450 | 500 |
| Table T-Slot Size (in mm) | 10 | 13 | 13 | 16 | 16 | 20 | 20 |
| Centre Bush Bore (morse taper) | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| Worm & Gear Ratio | 1:72 | 1:72 | 1:72 | 1:20 | 1:20 | 1:20 | 1:20 |
| Wheel Calibration ( in minutes ) | 2 | 2 | 2 | 1 | 1 | 1 | 1 |
| Height Overall (in mm) 713E Vertical |
240 | 300 | 365 | 425 | 530 | 620 | 620 |
| Base to centre | 125 | 160 | 180 | 220 | 265 | 315 | 315 |
| Weight (app. in Kgs) | 16 | 27 | 42 | 65 | 100 | 175 | 187 |
