734S

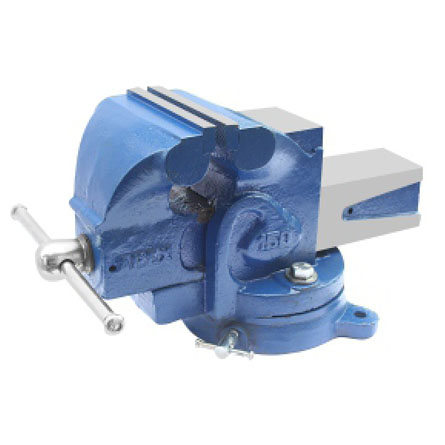

Cross Rib Bench Vice ( Swivel Base )

APEX Code SG734S

Cross Rib Bench Vice ( Swivel Base )
( Size : 3", 4", 5", 6", 8" )

Features :
  • Undoubtedly the most popular of the lot, these are a common sight in almost all workshop and garages These are available with a fixed base for regular usage or a swivel base that allows rotation through 360° with firm locking at any position. The swivel base allows the vice to be adjusted to accept work of varying length.
  • The Swivel base can be easily removed and vice converted back to a regular fixed base vice.
  • Warning: These vices are designed for gripping / holding jobs and should not be used where heavy hammering is anticipated.
  • SG Ductile Iron Body
Finish : Hammer tone metallic blue.
Specifications
Size in inches 3 4 5 6 8
Width of Jaws (in mm) 75 100 125 150 200
Opening of Jaws (in mm) 85 100 130 155 200
Depth of Jaws (in mm) 50 60 70 85 100
Weight (app.in Kgs) 6.5 10.3 15.5 25 39
