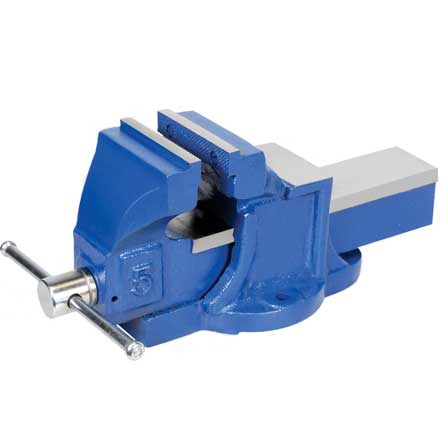

Mechanic's Bench Vice ( Fixed Base )

APEX Code 741

Mechanic's Bench Vice ( Fixed Base )
( Size : 2.1/4", 2.1/2", 3", 3.1/2", 4", 4.1/2", 5", 6", 8", 10", 12" )

Features :
  • Industry's favorite Mechanic's Bench Vices for 40 years had been made better. It's more of a "workhorse" than ever and here are solid reasons why
  • Massive Anvil: More anvil area than before and the largest of any Mechanic's Vice in the market.
  • Precision machine component & bearing surface for smooth operation and reliability.
Construction :
  • Stressed Parts "Beefed - up" ! Areas of greatest stress have been strengthened with shock resisting C.I. casting for long dependable service.
  • The large Diameter main screw fine pitched, square thread made of high grade steel.
  • Long Forged Steel: Detachable and replaceable nut.
  • Replaceable hardened steel serrated jaw plates guarantee a fast non-slip grip.
Finish : Enameled oxford blue
Specifications
No. 00 0 1 2 3 4 5 6 8 10 12
Size in inches 2.1/4 2.1/2 3 3.1/2 4 4.1/2 5 6 8 10 12
Width of Jaws (in mm) 60 65 80 90 100 115 125 150 200 250 300
Opening of Jaws (in mm) 60 65 90 100 120 140 170 200 235 300 365
Depth of Jaws (in mm) 45 50 55 60 70 80 85 90 110 120 140
Weight (app.in Kgs) 3.7 4.4 6 8.5 15 16 20 25 40 70 79
