Engineer's Vice
APEX Code 744

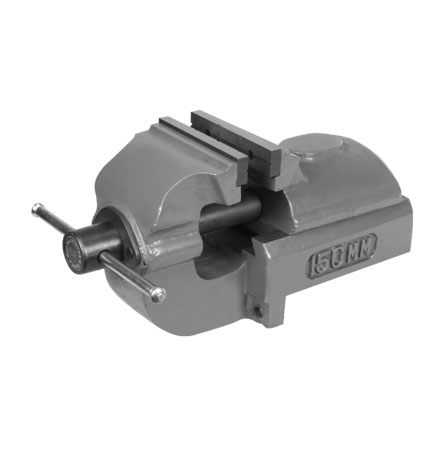

Engineer's Vice
( Size : 4", 5", 6" )
Features :
- Accurate : workmanship plus "APEX' design feature provide this vice great clamping strength and accuracy.
- Rear Jaw Sliding : The design of front jaw being stationary helps the additional muscular strength and never breaks like ordinary design.
- Dove Tail Guide Ways : Thus Positive locking to withstand heavy loads.
- Nut & Screw : Are held in Jig Bored Holes hence are within the perfect straight line and have no tension spring which provides free motion and does not strain the operator.
- Front Mounting : Holes are provided for Table and Mounts the vice with perfect rigidity.
- Body : is made of special high grade Casting to withstand any Shock load.
- Forged Nut : The Nut and the screw has been machined from high tensile steel forging. The Tropi Zodial Threads are machined on Thread wherling and has the same degree of Angle which give life long performance.
- Jaws : Hardened & Groung with "v" Grooves :The grip
is much more rigid with less torque at handle lever.
| Specifications | |||
| Size in inches | 4 | 5 | 6 |
| Width of Jaws (in mm) | 100 | 125 | 150 |
| Opening of Jaws (in mm) | 60 | 90 | 125 |
| Depth of Jaws (in mm) | 45 | 70 | 75 |
| Weight (app.in Kgs) | 8.5 | 16 | 31 |
