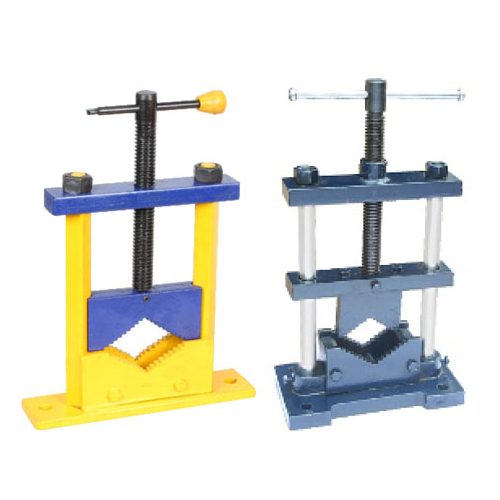

All steal Pipe Vice

APEX Code 747 & 747R

All steal Pipe Vice ( 747 - Square Pillar )
( Size : 1.1/2", 2", 3", 4", 6" )
( 747R - Round Pillar ) ( Size : 1.1/2", 2", 3", 4" )

Features :
  • The moveable jaw is running into square steel bars.
Construction :
  • All steel body replaceable accurately machined hardened & tempered jaws.
Finish : Yellow CODE 747R
  • These vices have all the features of Code 747 except the base is made of high graded cast Iron & moveable jaw is running into round steel bars.
Finish : Enameled oxford blue.
Specifications
Pipe Dia Capacity (in inches ) 1.1/2 2 3 4 6
Pipe Dia Capacity (in mm ) 40 50 75 100 150
Weight (app. in Kgs) Code 747 2 3.6 6 7.2 10
Weight (app. in Kgs) Code 747R 4.5 5.3 10 20 ...
