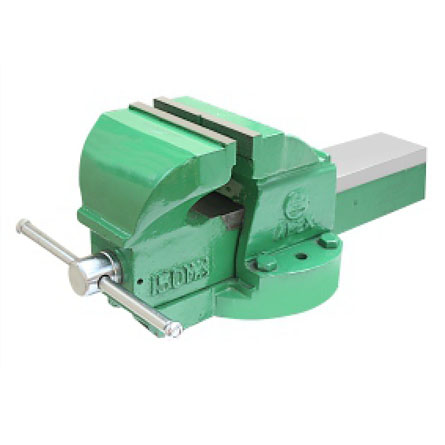

Tool Maker's Bench Vice ( Fixed Base )

APEX Code 757

Tool Maker's Bench Vice ( Fixed Base )
( Size : 3", 3.1/2", 4", 5", 6", 8" )

Features :
  • The whole mechanism is designed for safety in depth so that the handle will bend before the body is over stressed. Amargin of safety which we build into every Apex Vice.
Construction :
  • Nut : Bronze Acme Thread.
Finish : Enameled Opaline Green
Specifications
No. 1 2 3 5 6 8
Size in inches 3 3.1/2 4 5 6 8
Width of Jaws (in mm) 80 90 100 125 150 200
Opening of Jaws (in mm) 90 100 120 170 200 235
Depth of Jaws (in mm) 55 60 70 85 90 110
Weight (app.in Kgs) 6.6 9 16.7 22 29 44
