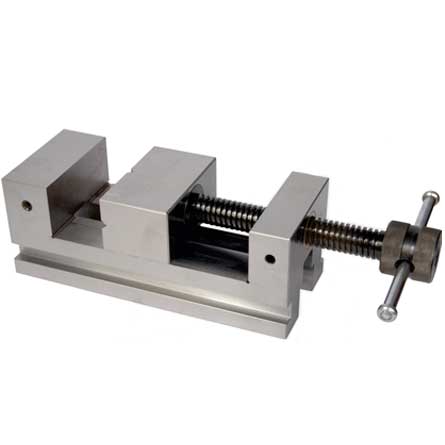

All Steel Precision Grinding Vice
APEX Code 771, 771T
All Steel Precision Grinding Vice
Features :
- All Vice surfaces are precision ground.
- The movable jaw is slightly narrow than the base enabling the vices to be used on either sides in addition to the base.
- Clamping and releasing is through a threaded spindle with precision cut square threads for smooth operation.
- Vice spindle moves in a specially designed gun metal bush which reduces wear thus enhancing the life of the vice.
- Fix Jaw side threaded for clamp support 5/16"BSW.
- These are available in two models.
- Used in tool manufacturing, on grinding, milling, and jig boring machines for measurement an inspection work and in anufacturing processes that require highest standards of clamping acuracy.
- Manufactured from Selected Carbon Steel, these soild one piece vices are fully hardened (45-50 HRC) and tempered to ensure stability and durability.
- Parallelism : 0.015 max (15 Microns)
- Perpendicularity : 0.015 max (15 Microns)
- Manufactured from Tool Steel Body, these soild one piece vices are fully hardened (52-60 HRC) and tempered to ensure stability and durability.
- Parallelism : within 8 microns
| Specifications | ||
| Size in inches | 3 | 4 |
| Width of Jaws (in mm ) | 76 | 95 |
| Depth of Jaws (in mm) | 40 | 45 |
| Opening of Jaws (in mm) |
82 | 105 |
| Length overall (in mm) | 200 | 235 |
| Height overall (in mm) | 70 | 90 |
| Weight (app. in Kgs.) | 5.220 | 9.700 |
