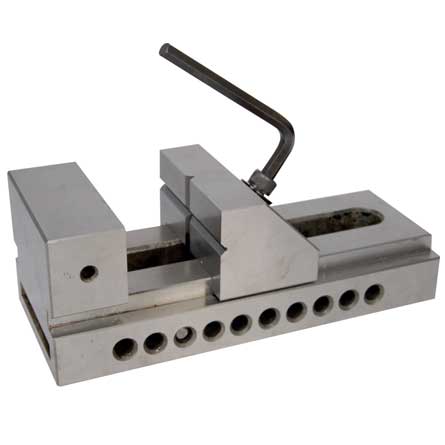

Tool Makers Precision Screw Less Vice

APEX Code 772, 772T

Tool Makers Precision Screw Less Vice

Features :
  • The rapid positioning notches allow the vice to be locked in any position by means of an allen key provided with the vice.
  • Vee grooves in the sliding jaw, both horizontal and vertical, facilitate holding of round jobs.
  • Jaw pressure on work piece is forward and downward for repeatable positioning and maximum holding power
Application :
  • The vices are particularly suitable for erosion work. Construction 772 :
  • Manufactured from Selected Carbon Steel, these soild one piece vices are fully hardened (45-50 HRC) and tempered to ensure stability and durability.
Accuracy :
  • Parallelism : within (15 Microns)
    Perpendicularity : within (15 Microns)
Construction 772T :
  • Manufactured from Tool Steel Body, these soild one piece vices are fully hardened (52-60 HRC) and tempered to ensure stability and durability.
Accuracy :
  • Parallelism : within 8 microns
    Perpendicularity : within 12 microns
Specifications
Size in inches 3 4
Width of Jaws (in mm ) 75 97
Depth of Jaws (in mm) 40 90
Opening of Jaws (in mm)
 105 130
Length overall (in mm) 74 94
Height overall (in mm) 196 245
Weight (app. in Kgs.) 4 8
